Encoder rotativo
Encoder rotativo serie E6B2 Omron - Imagen 2
Encoder rotativo serie E6B2 Omron - Imagen 3
Encoder rotativo serie E6B2 Omron - Imagen 4

Encoder rotativo serie E6B2 Omron

Encoder rotativos OMRON

Uso propósito general

Dámetro Externo: 40mm

Varias configuracions de RPM

Compartir
Compartir
Compartir

Encoder rotativo de propósito general con 40mm de diámetro externo
Ref: E6B2 CWZ1X, E6B2 CWZ5B, E6B2 CWZ6C

Power supply voltageOutput configurationResolution (pulses/rotation)Model

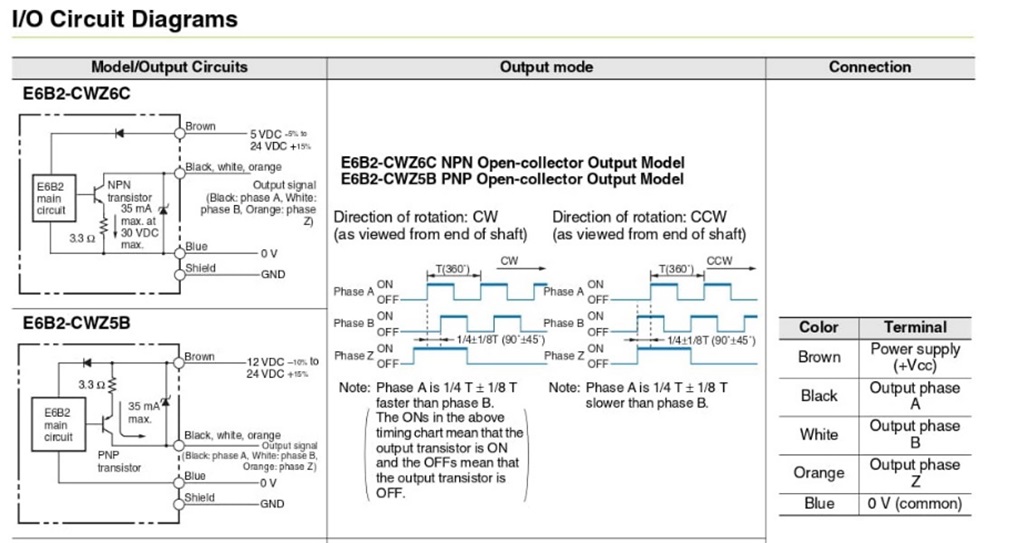

5 to 24 VDCNPN open-collector output10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 720, 800, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000E6B2-CWZ6C (resolution) 0.5M
Example: E6B2-CWZ6C 10P/R 0.5M
12 to 24 VDCPNP open-collector output100, 200, 360, 500, 600, 1000, 2000E6B2-CWZ5B (resolution) 0.5M
Example: E6B2-CWZ5B 100P/R 0.5M

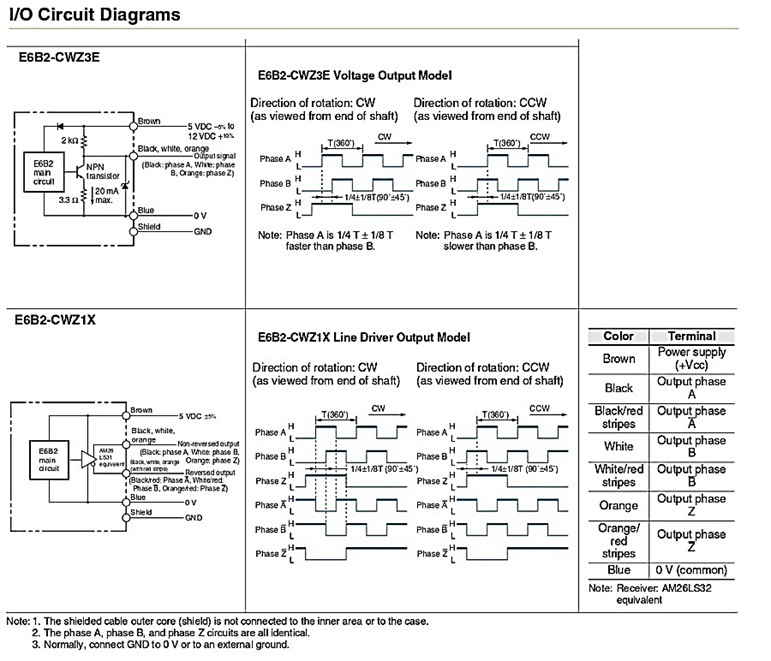

5 to 12 VDCVoltage output10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1000, 1,200, 1,500, 1,800, 2,000E6B2-CWZ3E (resolution) 0.5M
Example: E6B2-CWZ3E 10P/R 0.5M
5 VDCLine-driver output10, 20, 30, 40, 50, 60, 100, 200, 300, 360, 400, 500, 600, 1,000, 1,024, 1,200, 1,500, 1,800, 2,000E6B2-CWZ1X (resolution) 0.5M
Example: E6B2-CWZ1X 10P/R 0.5M



Descargar ficha técnica (PDF)

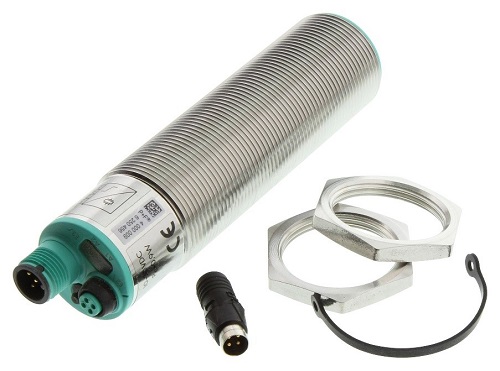

SENSOR ULTRASÓNICO UC2000-30GM-IUR2-V15 - PEPPERL+FUCHS
